How Are Paper Bags Made? A 6-Step Breakdown (with Industry Diagrams)

Are you curious about how simple paper bags are mass-produced? It might seem like magic, but it’s a precise process. We will show you exactly how it happens in factories like ours.

Paper bags are made using an automated industrial process. This process starts with raw pulp, forms it into paper, prints designs, then cuts, folds, glues, and sometimes adds handles to create the final bag. Modern machinery handles these steps efficiently for large quantities.

Understanding this process helps you appreciate the bags you use every day. Let’s look closer at each stage, from the raw material to the finished product ready for your goods. We know this process well at XINYUAN.

How are paper bags made step by step?

Confused about the exact sequence in making a paper bag? Getting the order right is critical for quality. Let’s walk through the essential steps we use in production.

The basic steps are: 1. Making pulp from wood or recycled paper. 2. Forming paper sheets from pulp. 3. Printing designs if needed. 4. Cutting and forming the bag tube. 5. Folding and gluing the bottom. 6. Attaching handles and finishing.

Dive Deeper: The Manufacturing Sequence

Making a paper bag seems simple, but precision is key at every stage, especially in large-scale production like ours at XINYUAN. Here’s a more detailed look:

Step 1: Pulp Production

It starts with raw materials, usually wood chips or recycled paper. These materials are processed to create pulp. For strong bags like Kraft paper bags, the Kraft process is often used. This chemical process removes lignin (a natural glue in wood) to produce strong cellulose fibers. Recycled paper goes through a de-inking and cleaning process before being pulped. The choice of raw material affects the final bag’s strength and appearance.

Step 2: Papermaking

The pulp, mixed with water and potentially additives, is spread onto large screens. Water drains away, and the fibers mesh together. Then, large rollers press and heat the material to form a continuous sheet of paper, called a web. This web is dried and wound into huge rolls, ready for the next stage.

Step 3: Printing (Optional)

If the bags need branding or designs, the large paper rolls go through printing presses. Flexographic printing is common for paper bags. It uses flexible printing plates to apply ink quickly and efficiently. At XINYUAN, we offer free typesetting services to help design your print. Remember, creating a new design requires a printing plate, which has a one-time fee paid to the plate-making factory. If you reorder with the same design, you won’t pay this fee again.

Step 4: Tube Forming & Cutting

The printed (or unprinted) paper roll is fed into a bag-making machine. The machine first forms the paper into a continuous tube by folding it over and gluing the seam. Then, it cuts the tube into individual bag lengths based on the required size.

Step 5: Bottom Folding & Gluing

This is a crucial step for the bag’s strength. The machine makes precise folds at one end of the paper tube to create the bag’s base. Glue is applied automatically, and the bottom is pressed shut. Different machines can create various bottom styles, like flat or gusseted bottoms.

Step 6: Handle Attachment (Optional) & Finishing

For bags with handles, a separate unit or part of the main machine punches holes and attaches handles (like twisted paper handles or flat tape handles). Finally, the finished bags are bundled and packed for shipping. Our automated systems ensure consistency and quality throughout.

Step	Key Action	Importance
Pulp Making	Fiber separation (e.g., Kraft)	Determines paper strength
Papermaking	Forming & drying paper web	Creates the base material
Printing	Applying designs/branding	Customization, brand identity
Tube Forming	Creating the main bag body	Defines bag shape & size
Bottom Making	Folding & gluing the base	Ensures bag holds contents
Finishing	Adding handles, bundling	Final usability & packaging

How are bags made in industry?

Ever wonder how factories produce millions of bags efficiently? Hand-making isn’t practical for large orders. Industrial production relies heavily on specialized, high-speed machinery for consistency and volume.

Industrially, paper bags are mass-produced on automated assembly lines. Large paper rolls feed into machines that perform printing, tube forming, cutting, bottom folding, gluing, and handle attachment in a continuous, high-speed process with minimal manual intervention.

Dive Deeper: The Factory Floor Perspective

Walking through a factory like ours, XINYUAN, you see the scale of modern paper bag production. It’s not just one machine, but often a connected system designed for efficiency and quality control.

Raw Material Handling

Everything starts with massive rolls of paper, sometimes weighing hundreds of kilograms. These are loaded onto roll stands, often using lifts. The paper type (Kraft, recycled, coated) depends on the customer’s order specification. Having a reliable supply chain for these raw materials is vital, something we ensure for consistent production.

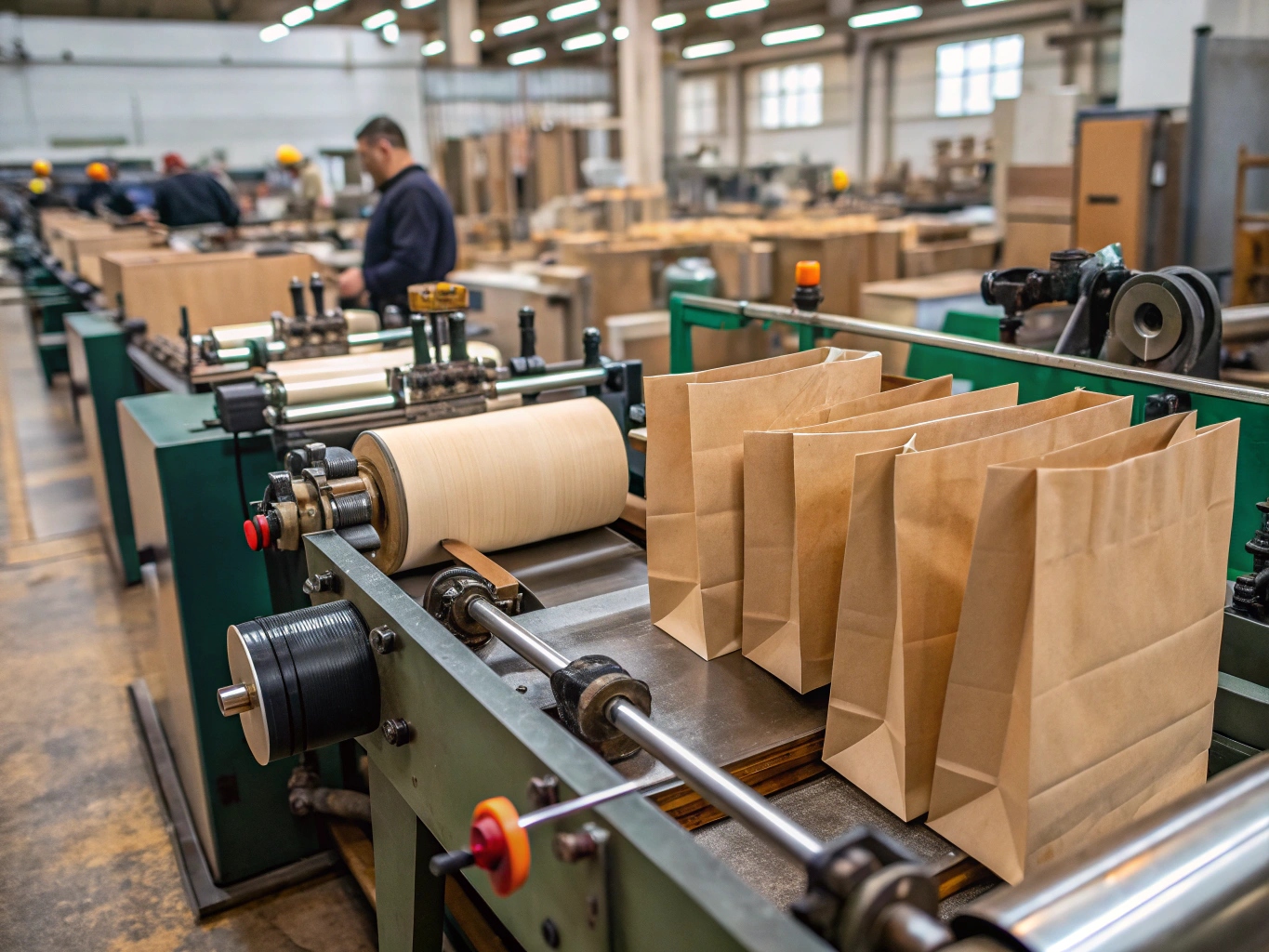

The Automated Bag-Making Line

The heart of the operation is the bag-making machine. These are complex pieces of engineering.

• Unwinding & Tension Control: The paper roll unwinds smoothly with controlled tension to prevent tearing or misalignment.
• Printing Unit: If printing is needed, the paper passes through inline flexographic printers integrated into the machine.
• Forming Station: The paper web is shaped around a forming plate or mandrel to create the tube. Glue is applied precisely along the edge for the side seam.
• Cutting Unit: Rotating knives or cutting mechanisms cut the continuous tube into exact lengths for each bag.
• Bottom Forming & Gluing: A series of mechanical folders, tuckers, and glue applicators create the bag’s base. This requires precise timing and alignment.
• Handle Unit (Optional): For handled bags, a separate module cuts handle materials, forms them, and glues them to the bag body, often reinforcing the attachment area.

Quality Control and Output

Throughout the process, sensors and checks monitor alignment, glue application, and print quality. Our experienced operators oversee the machines, making adjustments as needed. Finished bags come off the line at high speed, often hundreds per minute, and are automatically counted and stacked or bundled. At XINYUAN, our experienced employees and robust equipment allow us to handle very large orders while maintaining stable quality. Our complete system, from raw material processing to finished product, embodies the spirit of craftsmanship – steady work for good products.

Machine Section	Function	Key Factor
Roll Stand	Holds and feeds the paper roll	Tension Control
Printing Unit (Inline)	Applies branding/designs	Registration
Forming Section	Creates paper tube, side seam gluing	Alignment
Cutting Unit	Separates tube into bag lengths	Accuracy
Bottom Forming	Folds and glues the base	Precision
Handle Unit	Creates and attaches handles	Strength
Delivery/Stacking	Collects and bundles finished bags	Speed

How to make a paper bag with newspaper step by step?

Want a simple craft project or a quick, temporary bag? Making one from newspaper is easy, but very different from industrial methods. Let’s outline the basic home craft steps.

To make a newspaper bag: Fold a double-page spread, glue the long side to form a tube, fold up the bottom edge several inches, create a diamond shape, fold flaps, glue securely, and let dry.

Dive Deeper: Crafting vs. Manufacturing

Making a paper bag by hand using newspaper is a fun and accessible activity. It helps understand the basic structure of a bag. However, it highlights the vast differences compared to industrial manufacturing.

Materials Needed:

• A large sheet of newspaper (like a double-page spread)
• Glue stick or liquid glue
• Scissors (optional, for trimming or handles)
• Ruler (optional, for precise folds)
• String or ribbon (optional, for handles)
• Hole punch (optional, for handles)

Step-by-Step Guide:

1. Prepare the Paper: Lay the newspaper sheet flat. If using a double spread, keep it folded in half along the center crease initially.
2. Form the Tube: Fold one long edge over towards the other, overlapping by about half an inch to an inch. Apply glue along this edge and press firmly to seal the side, creating a flat tube.
3. Create the Bottom: Decide which end will be the bottom. Fold this end up by a few inches (3-4 inches works well). Crease this fold sharply.
4. Shape the Base: Open the folded bottom section. Push the sides inwards along the creases you just made, flattening it into a diamond or hexagonal shape. You should see two triangular flaps pointing towards the center.
5. Glue the Base: Fold the top and bottom points (flaps) of the diamond towards the center line, overlapping them slightly. Apply glue generously to secure these flaps. Press firmly and let the glue dry completely. This forms the flat bottom of the bag.
6. Add Handles (Optional): Once the bottom is dry, you can fold the top edge down for reinforcement. Punch two holes on each side near the top edge and thread string or ribbon through to make handles, knotting them inside.

This DIY method produces a functional bag for light items. However, compared to industrial bags from XINYUAN, it lacks strength, water resistance, precise sizing, and professional printing. Our machines use stronger Kraft paper, specialized adhesives, and automated processes for consistency and durability suitable for commercial use. While DIY is great for crafts, businesses need reliable, mass-produced packaging.

Feature	DIY Newspaper Bag	Industrial Paper Bag (XINYUAN)
Material	Newspaper (weak)	Kraft/Specialty Paper (strong)
Production Speed	Very Slow (manual)	Very Fast (automated)
Strength	Low	High
Consistency	Variable	High
Customization	Limited (manual drawing)	Professional Printing
Cost per unit	Low (materials)	Low (at scale)
Suitable Use	Light crafts, temporary	Retail, Food, Commercial

What chemical process is used to make paper bags?

Ever noticed how brown paper bags are surprisingly strong? It’s not just the paper thickness; a specific chemical process creates that strength, especially for Kraft paper bags.

The primary chemical process used for strong paper bags is the Kraft process (also called the sulfate process). This method uses chemicals to efficiently separate strong cellulose fibers from wood by dissolving lignin.

Dive Deeper: The Science of Strong Paper

The strength of many paper bags, particularly the common brown grocery bags or sturdy shopping bags, comes from the way the paper pulp is produced. The Kraft process is dominant for this purpose.

The Kraft Process Explained

Developed in the late 19th century, the Kraft process (from the German word for "strong") revolutionized papermaking.

1. Wood Chipping: Trees are debarked and cut into small chips.
2. Digesting: These chips are cooked under high pressure and temperature in a "digester" vessel with a chemical solution called "white liquor." This solution mainly contains sodium hydroxide (NaOH) and sodium sulfide (Na2S).
3. Lignin Removal: These chemicals break down and dissolve lignin, the natural polymer that binds wood fibers together and makes wood rigid. Removing lignin leaves behind the strong cellulose fibers relatively undamaged.
4. Pulp Washing: The resulting pulp (mostly cellulose fibers) is separated from the spent cooking liquid ("black liquor"). The pulp is washed to remove residual chemicals.
5. Optional Bleaching: For white paper bags, the brown pulp undergoes a bleaching process. For standard brown Kraft bags, this step is omitted, which also retains more fiber strength and is generally considered more environmentally friendly.

Why is Lignin Removal Important?

Lignin degrades over time and weakens paper. By removing most of the lignin, the Kraft process produces pulp with long, strong cellulose fibers. This results in paper with high tensile strength and tear resistance, ideal for bags that need to carry weight.

Environmental Considerations

Modern Kraft mills have sophisticated chemical recovery systems. The "black liquor" is concentrated and burned to generate energy for the mill and recover the cooking chemicals for reuse, making the process more sustainable than it might initially sound. However, like any industrial process, it requires careful environmental management. At XINYUAN, we source our paper from responsible suppliers who adhere to environmental standards.

Component	Role in Kraft Process	Impact on Paper
Wood Chips	Source of cellulose fibers and lignin	Base material
NaOH, Na2S	Chemicals in "white liquor"	Dissolve lignin
Heat/Pressure	Speeds up the chemical reaction in the digester	Facilitates lignin removal
Lignin	Natural binder in wood	Removed for fiber strength
Cellulose Fiber	The strong structural component of wood	Forms the paper sheet
Black Liquor	Spent chemicals and dissolved lignin	Recycled for energy & chemicals

Understanding this process helps appreciate why Kraft paper bags are a reliable choice for packaging.

Conclusion

Making paper bags involves turning raw pulp into paper, then using automated machines for printing, cutting, folding, and gluing. This industrial process ensures strength, consistency, and efficient production for reliable packaging.
